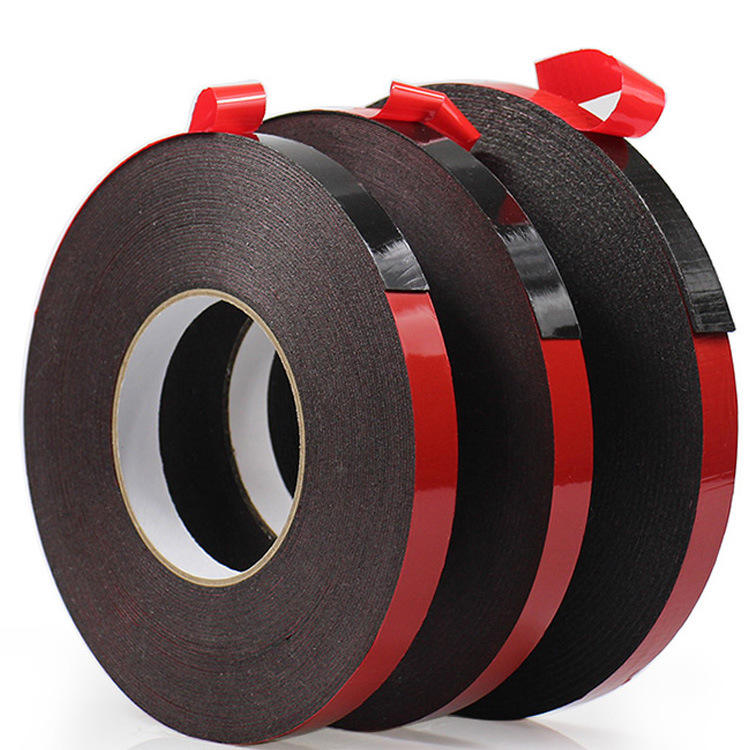

PE Foam Tape for Industrial Sealing, Cushioning and Assembly



Key Takeaways



• PE foam tape combines a flexible polyethylene foam carrier with pressure-sensitive adhesive.
• Its foam structure can help accommodate minor surface irregularities and provide cushioning.
• It is commonly used for mounting, sealing, vibration absorption and component protection.
• Different thicknesses, adhesive systems and liners are available for different industrial requirements.
• Application testing is recommended when bonding surfaces or environmental conditions are demanding.



---



Why PE Foam Tape Is Used in Industrial Applications



Industrial assembly often requires more than simple adhesion. The bonding material may also need to compensate for small surface gaps, absorb vibration, reduce movement, or provide additional protection against moisture and dust.



This is where PE foam tape offers a practical advantage.

The polyethylene foam carrier is flexible, while the pressure-sensitive adhesive provides the bonding interface. Together, these two components allow the tape to perform both mounting and cushioning functions without adding a rigid mechanical connection.

For manufacturers, this can simplify assembly and provide a cleaner finished appearance.



---



How the PE Foam Structure Supports Bonding



PE foam has a flexible cellular structure that can conform to minor irregularities on a bonding surface.

When pressure is applied during installation, the adhesive can make closer contact with the substrate. The foam layer also helps maintain contact when the assembled components experience small amounts of movement.



This makes PE foam tape particularly useful when rigid bonding methods are not ideal.

However, the actual bonding strength depends on several factors, including the adhesive formulation, substrate, surface condition, tape thickness, and application temperature.



---



Three Important Functions of PE Foam Tape



1. Mounting and Bonding



Double-sided PE foam tape can be used to attach lightweight and medium-duty components without screws or other mechanical fasteners.

Typical substrates include:

• Metal
• Glass
• Plastics
• Painted surfaces
• Decorative materials



The adhesive should always be matched to the specific substrate, especially when bonding low-surface-energy plastics or coated materials.

---PE Foam Tape for Industrial Mounting and Assembly



---



2. Sealing and Gap Filling



The flexible foam layer can help fill small gaps between two surfaces.

Depending on the tape construction and adhesive system, PE foam tape can provide additional protection against moisture, dust, and environmental exposure.



This makes it useful for applications such as:

• Door and window components
• Automotive trim
• Panels
• Signs and nameplates
• Equipment housings



It is important to distinguish moisture resistance of the foam carrier from the overall waterproof performance of a finished assembly. The adhesive, substrate, edge design, and application process all affect the final seal.



---



3. Cushioning and Vibration Absorption



Rigid components can experience vibration and impact during transportation or operation.

The foam layer provides a degree of cushioning between bonded surfaces, helping reduce direct contact and absorb mechanical movement.



This property is valuable for:

• Automotive components
• Electronic assemblies
• Appliances
• Industrial equipment
• Decorative parts



---



Where Is PE Foam Tape Commonly Used?



Automotive



Automotive manufacturers use foam adhesive tapes for various interior and exterior components.



Applications can include:

• Decorative trim
• Emblems and nameplates
• Door components
• Window accessories
• Interior panels
• Lightweight mounting parts



For automotive projects, the adhesive should be selected according to the substrate, temperature range, vibration level, and required service life.

---Automotive PE Foam Tape for Reliable Vehicle Assembly







---



Electronics



PE foam tape can provide both attachment and cushioning in electronic and electrical products.



Common uses include:

• Component mounting
• Protective pads
• Display-related assemblies
• Cable and accessory fixation
• Housing components



For sensitive electronic products, factors such as residue, outgassing, insulation requirements, and long-term aging should be evaluated according to the application.



---



Construction and Building Materials



PE foam tape can also be used for mounting and sealing certain lightweight building components.



Potential applications include:

• Decorative panels
• Profiles
• Signs
• Window-related components
• Lightweight fixtures



The exact tape specification should be selected according to the substrate and expected environmental exposure.



---



PE Foam Tape Selection: What Should Buyers Consider?



For B2B purchasing, choosing a tape based only on price or adhesive strength can lead to performance problems later.



Foam Thickness

Thicker foam can provide greater gap-filling and cushioning capability, while thinner tape may be more suitable where installation space is limited.



Adhesive Type

Acrylic and rubber-based adhesive systems can have different characteristics in terms of initial tack, temperature resistance, aging, and surface compatibility.



Surface Material

Always consider the actual bonding substrate.

A tape that performs well on metal may behave differently on PP, PE, powder-coated surfaces, or other plastics.



Environmental Conditions

Consider: Temperature / Humidity / UV exposure / Chemicals / Vibration / Outdoor or indoor use

For demanding applications, testing samples under actual conditions is strongly recommended.



---



PE Foam Tape vs. Other Adhesive Tape Structures





The choice depends on the application rather than simply selecting the tape with the highest adhesive strength.



---



How to Improve PE Foam Tape Bonding Performance



Even a well-designed tape can perform poorly if the application process is incorrect.



Before bonding:

1. Clean dust, oil, and other contaminants from the surface.
2. Make sure the substrate is dry.
3. Apply the tape evenly without stretching it excessively.
4. Use sufficient pressure to establish good surface contact.
5. Allow appropriate dwell time when required by the adhesive system.



For production applications, trial testing should be carried out before full-scale manufacturing.



---



A More Flexible Solution for Modern Assembly



As manufacturers look for cleaner assembly methods and more efficient production processes, foam adhesive tapes provide an alternative to some traditional mechanical fastening methods.



PE foam tape is particularly useful when a project requires a combination of:

Bonding + Cushioning + Gap Filling + Sealing



Instead of using separate materials for each function, one properly selected tape can help simplify the assembly design.



---



Conclusion



PE foam tape is a versatile adhesive material for industrial mounting, sealing, cushioning, and component assembly.

Its flexible foam carrier helps accommodate minor surface irregularities, while the adhesive layer provides the required bonding performance. However, there is no single PE foam tape that is suitable for every application.



Foam thickness, adhesive chemistry, substrate, temperature, environmental exposure, and production conditions should all be considered before selecting a specification.



For B2B projects, working with a manufacturer that can provide different adhesive systems, thicknesses, liners, widths, and converting options can make it easier to develop a tape solution suited to the actual application.
