Automotive Foam Tape Applications: Reliable Bonding Solutions for Vehicle Interior and Exterior Assembly



A trim piece that lifts at the edge, an emblem that shifts out of position, or an interior panel that starts to rattle can turn a seemingly small bonding issue into a costly assembly problem.

In vehicle manufacturing, adhesive tape selection is therefore not simply a question of finding a product that feels sticky. The tape must suit the materials being joined, the geometry of the parts, the assembly process, and the conditions the finished vehicle will experience.



Automotive foam tape is used in many applications where manufacturers need concealed attachment, surface conformity, and controlled bonding between components. Acrylic foam tape is one option for demanding mounting applications, while other foam constructions may be more suitable for cushioning, sealing, or general assembly.



This guide takes a practical approach to automotive foam tape selection, covering application requirements, common bonding problems, material compatibility, and the checks worth completing before production.





Key Takeaways

     •  Automotive foam tape is commonly used for trim, emblems, decorative panels, and selected interior mounting applications.

     •  Acrylic foam tape is worth evaluating when an application requires durable bonding and the ability to accommodate movement between components.

     •  The correct tape depends on the substrate, available bonding area, surface finish, thickness, and service environment.

     •  A higher initial tack does not automatically mean better long-term performance.

     •  Surface preparation, application pressure, positioning, and bonding time all influence the finished bond.

     •  Prototype testing with actual production materials is recommended before approving a tape for mass production.





1. Start with the Bonding Problem, Not the Tape

Before comparing tape products, define what the joint needs to do.

A decorative emblem, a long exterior molding, and an interior panel may all use double-sided foam tape, but their bonding requirements can be very different.

An emblem may have a small contact area and need precise positioning. A long trim strip may follow a curved body panel and experience different movement from the painted metal beneath it. An interior component may be more concerned with fit, appearance, and resistance to vibration.

These differences affect the tape specification.



When reviewing an automotive bonding project, establish the following:

     •  Materials: What are the two surfaces being joined?

     •  Geometry: Are the surfaces flat, curved, textured, or uneven?

     •  Bonding area: How much contact area is available?

     •  Loading: Will the joint experience peel, shear, vibration, or repeated movement?

     •  Environment: Will it encounter sunlight, moisture, temperature changes, or automotive cleaning products?

     •  Assembly process: Will the tape be applied manually, by a jig, or through automated equipment?



Answering these questions first makes it easier to narrow the available options and avoid selecting a tape based on a single headline specification.

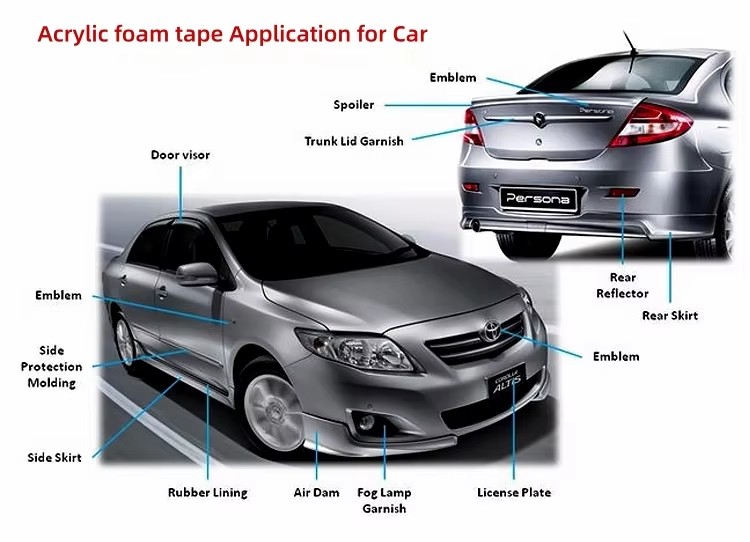

2. Where Automotive Foam Tape Is Used



Exterior trim and body-side moldings

Exterior moldings, decorative strips, and selected body accessories often need a clean appearance without exposed screws or other visible fasteners.

A suitable acrylic foam tape can create a concealed bond while accommodating minor surface variations. The final performance depends on the adhesive system, the paint or coating, the component design, and the environmental conditions.



For projects involving gray foam and a relatively thin bond line, GMARK offers automotive trim mounting tape with a nominal foam thickness of 0.8 mm.

This product can be considered for evaluation with suitable automotive trim and decorative components. Whether it is appropriate for a particular exterior application must be confirmed through substrate testing and the required environmental validation.



Emblems, badges, and nameplates

Small badges and nameplates require accurate positioning and sufficient adhesive contact across the available bonding area.

The back of a badge may be metal, painted plastic, or another material with a particular surface finish. Even when two products look similar, their adhesion requirements may differ.



For these applications, check:

     •  Whether the back surface is flat or curved

     •  The available bonding area

     •  The material and surface coating

     •  The required positioning tolerance

     •  The exposure to water, heat, and cleaning products

A tape with strong initial tack may help hold a component in position, but long-term attachment still depends on the complete bond design.



Interior panels and decorative parts

Interior assemblies may combine ABS, PC, painted plastic, metal, fabric, and other materials. Foam tape can be used to mount selected decorative inserts, trim pieces, and lightweight components where the design permits adhesive attachment.

The priorities may include more than bond strength. A suitable solution may also need to maintain appearance, accommodate dimensional variation, and perform consistently during repeated temperature changes.

The tape should be assessed against the actual materials and assembly conditions rather than selected solely because it is described as an automotive product.



Industrial mounting and component assembly

Some automotive suppliers also use foam tape in fixtures, panels, signs, and other industrial assemblies. In these cases, the required thickness, adhesive characteristics, and converting format may differ from those used for exterior vehicle trim.



GMARK's double sided acrylic foam tape is an option to evaluate for suitable industrial bonding and mounting projects.

For a production application, confirm the substrate combination, required holding performance, dimensions, and service conditions before finalizing the specification.









3. Choosing Between Acrylic Foam Tape and Other Foam Tapes



Not every foam tape is designed to perform the same job. The carrier and adhesive system both influence the final result.



Tape type	Typical characteristics	Applications to evaluate	Main consideration
Acrylic foam tape	Viscoelastic foam construction; selected grades offer durable bonding and environmental resistance	Exterior trim, emblems, selected permanent mounting applications	Adhesion to the actual substrate and long-term environmental performance
PE foam tape	Flexible carrier with cushioning and gap-compensation capabilities	General mounting, selected interior components, sealing, and cushioning	Adhesive grade, compression behavior, and holding requirements
EVA foam tape	Flexible foam construction available in different adhesive configurations	Selected cushioning, spacing, and sealing applications	Compression, environmental exposure, and substrate compatibility
Thin double-sided film tape	Low-profile construction with limited foam cushioning	Flat, lightweight components with restricted clearance	Surface flatness and the need for conformity



These are general material comparisons, not universal performance rankings. The properties of a finished tape depend on its formulation, thickness, adhesive coating, and manufacturing process.

For an exterior trim application, acrylic foam tape is often worth considering first. If the main requirement is cushioning or filling a small gap, another foam construction may be more appropriate.





4. How to Select the Right Automotive Foam Tape



Step 1: Identify the exact substrate materials

The term “plastic” covers many materials with different bonding characteristics.

Painted metal, ABS, polycarbonate, polypropylene, and other substrates can behave differently when bonded. Surface coatings, mold-release agents, plasticizers, and texture can also influence adhesion.

Where possible, identify the exact substrate and surface finish. For painted vehicle parts, the paint system is part of the bonding surface and should be included in the evaluation.

Testing on a generic metal panel alone may not represent performance on the actual production component.



Step 2: Choose thickness according to the joint design



Tape thickness affects how the joint fits together and how well the foam can accommodate surface variation.



Design condition	What to consider
Flat surfaces with limited clearance	A thinner tape may help maintain a low-profile bond line
Moderate contour variation	A suitable medium-thickness foam may improve contact, depending on the part geometry
Larger surface irregularities	Evaluate whether additional conformity is needed and whether the design allows a thicker bond line
Small badges or narrow components	Check the available contact area and the risk of edge lifting



A thicker tape does not automatically produce a stronger bond. Excessive thickness may affect alignment, stability, or the appearance of the finished assembly.

For example, GMARK's 0.8 mm acrylic foam tape may be a candidate for evaluation when a relatively thin bond line is required. The final thickness should be established through the actual assembly design and validation process.



Step 3: Match the adhesive to the surface

Adhesive compatibility is one of the most important parts of tape selection.

A tape that bonds well to one painted metal surface may perform differently on a textured plastic or a low-surface-energy material. Some substrates may require a specially formulated adhesive or a validated surface treatment.



When evaluating a candidate tape, consider:

     •  Initial adhesion during assembly

     •  Peel resistance

     •  Shear performance under sustained loading

     •  Adhesion development over time

     •  Compatibility with the substrate coating

     •  Resistance to the intended service environment

For applications that require a high-bond acrylic foam construction, GMARK's high bond acrylic foam tape can be considered for testing against the project requirements.

The phrase “high bond” should not replace a review of technical data. The selected grade must still be verified on the actual materials and under the relevant conditions.



Step 4: Separate application temperature from service temperature

The temperature at which tape is applied is not necessarily the same as the temperature it can withstand during service.

Cold application conditions can affect adhesive wetting and initial contact. Later, the finished assembly may experience heat from sunlight, the vehicle interior, or nearby components.

Check the product's technical data for the relevant application and service limits. Where necessary, include temperature conditioning in the validation plan.

Do not transfer a temperature rating from one tape model to another, even when the products have similar thicknesses or colors.



Step 5: Check the liner and converting requirements

The release liner can affect production handling, particularly when components are small or the tape is applied at high speed.



Consider whether the assembly needs:

     •  Standard rolls or narrow slit rolls

     •  Custom lengths

     •  Die-cut shapes matched to component drawings

     •  A liner that can be removed efficiently

     •  Consistent dimensions for automated application

For production buyers, it is useful to discuss the component drawing and application process before finalizing a converted tape specification.





5. Why Automotive Tape Bonds Fail



When a bonded component moves or lifts, increasing the adhesive strength is not always the right first response. The cause should be investigated.



Observed issue	Possible explanation	What to check
Tape lifts at the edges	Contamination, poor contact, or stress concentrated at the edge	Surface cleaning, component fit, bonding area, and application pressure
Component shifts after application	Insufficient initial holding, incorrect positioning, or premature loading	Application conditions, assembly fixtures, and bonding time
Bond performance changes after heat exposure	Material movement, substrate incompatibility, or an unsuitable tape grade	Actual material combination and environmental test results
Results vary between production batches	Inconsistent surface preparation, pressure, or handling	Standardize the process and inspect incoming materials
Tape does not wet out across the full area	Uneven surfaces, poor fit, or insufficient pressure	Component geometry, contact area, and application method



These are possible causes, not definitive diagnoses. More than one factor may contribute to a failure.

A useful troubleshooting process records the failure location, substrate, environmental history, application conditions, and time elapsed before the issue appeared. That information is more helpful than simply describing the tape as weak.

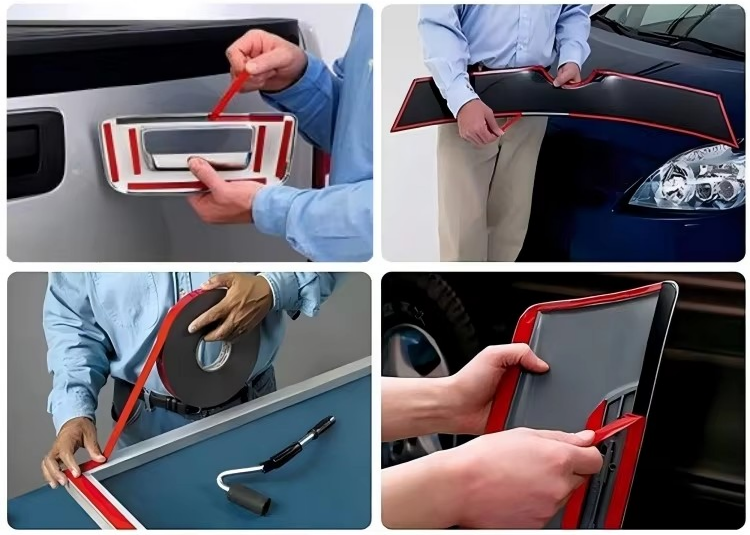

6. Surface Preparation and Application Best Practices

A suitable tape can still underperform if the bonding process is inconsistent.



Clean the bonding area

Remove dust, oil, and other contaminants using a method compatible with the substrate and its finish. Allow the surface to dry before applying the tape.

Do not assume the same cleaning solvent is suitable for every plastic, paint system, or coating.



Position the component carefully

Plan the placement before removing the liner. Once the tape contacts the surface, repositioning may be difficult or may affect the bond.

For curved or elongated components, control the application path to avoid wrinkles, trapped debris, and unintended stretching.



Apply consistent pressure

Pressure helps the adhesive make contact with the substrate. Use a repeatable method across the full bonding area, especially when working with narrow strips or die-cut pieces.

The appropriate application conditions depend on the specific tape and assembly.



Allow the bond to develop

Initial tack is not the same as final bond performance. Some pressure-sensitive adhesive systems continue developing adhesion after application.

Follow the relevant technical data and avoid loading the assembly prematurely when the application requires additional bonding time.



Validate the complete assembly

Before approving a tape for mass production, test representative parts using the actual substrate, surface finish, geometry, and application process.

Depending on the application, the validation plan may include:

     •  Initial adhesion and positioning checks

     •  Peel or shear tests using a defined method

     •  Temperature conditioning

     •  Moisture or humidity exposure

     •  Mechanical loading or vibration testing

     •  Inspection for edge lifting, movement, and appearance changes



ASTM D3330/D3330M provides standardized methods for measuring peel adhesion of pressure-sensitive tape. However, a peel result alone does not establish suitability for every automotive application. The test method and acceptance criteria should match the intended use.

For additional guidance on automotive acrylic foam tape behavior and application, see 3M's automotive acrylic foam tape technical information.





7. Questions to Ask a Tape Supplier Before Ordering

A clear technical inquiry can reduce unnecessary sampling and help identify suitable options sooner.



Provide the following information whenever possible:

1. Application: What component will be attached, and where will it be installed?

2. Substrates: What are the two bonding materials and their surface finishes?

3. Dimensions: What tape width, length, thickness, and bonding area are required?

4. Environment: What temperatures, moisture exposure, or chemicals should the bond withstand?

5. Performance requirements: Is peel resistance, shear holding power, conformity, or appearance the main priority?

6. Production method: Will the tape be applied manually or by machine? Are die-cut parts required?

7. Order requirements: What is the target quantity, sample quantity, and expected production schedule?



Drawings, photos of the bonding area, and representative substrate samples can be particularly helpful when the geometry is complex.

The more accurately the application is described, the easier it is to identify products for evaluation instead of relying on a broad product category.



Frequently Asked Questions



What is automotive foam tape used for?

Automotive foam tape is used for selected mounting and bonding applications, including exterior trim, emblems, decorative parts, and interior components. The suitable tape depends on the materials, geometry, loading, and service environment.



Is acrylic foam tape suitable for exterior vehicle trim?

Some acrylic foam tape grades are designed for exterior mounting and can offer suitable environmental durability. Confirm the exact product's technical data and test it with the intended paint system or plastic substrate before production.



Does a thicker foam tape provide a stronger bond?

Not necessarily. Thickness influences conformity, spacing, and joint geometry, but bond performance also depends on the adhesive, substrate, bonding area, and loading conditions.



Can foam tape replace screws or clips?

Foam tape can replace mechanical fasteners in selected applications where the joint design and performance requirements permit it. It should not replace a required mechanical attachment or safety-critical fastening method without appropriate engineering approval and validation.



Can one tape bond all automotive plastics?

No. Different plastics and surface finishes have different bonding characteristics. Identify the actual substrate and evaluate the tape against representative samples.



Final Thoughts



Choosing automotive foam tape is a process of matching the tape to the joint, not simply selecting the stickiest product available.

Start with the materials and component design. Consider thickness, adhesive compatibility, application conditions, and environmental exposure. Then verify the result through testing that reflects the actual production process.



For automotive trim, decorative components, and industrial mounting projects, GMARK offers acrylic foam tape options in different constructions and formats. Sharing the substrate materials, dimensions, application conditions, and target performance requirements can help narrow the products worth evaluating before mass production.
