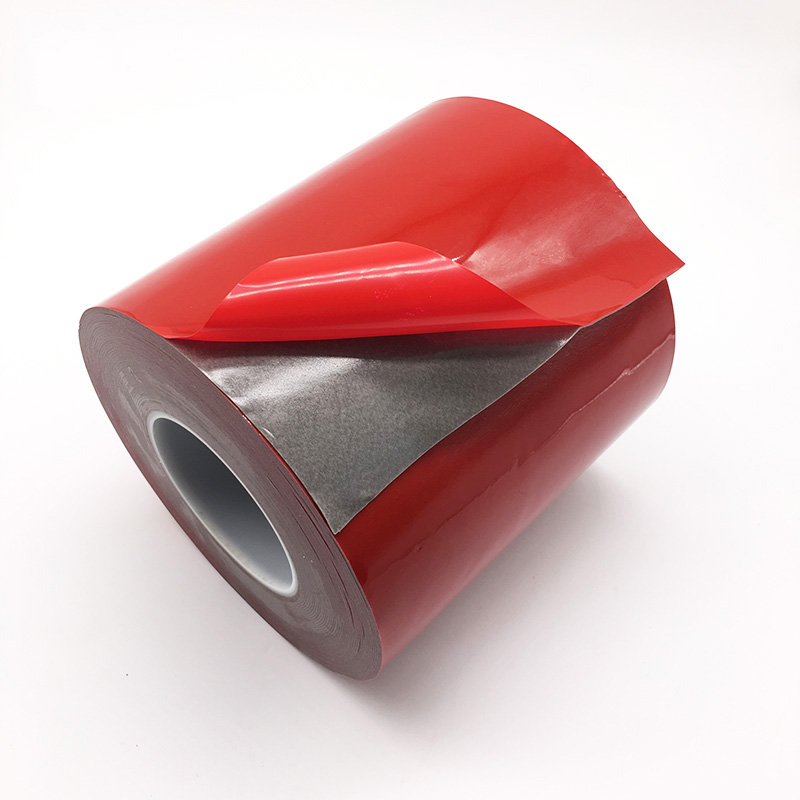

Gray 0.8mm Acrylic Foam Tape with Red PE Liner for Automotive Trim
GMARK Acrylic Foam tape uses solvent-based acrylic foam as the base material and is laminated with release paper or release film.The gray version offers a balanced appearance for automotive trim, nameplates and exterior components. Thicknesses from 0.25mm to 2.0mm and four color options support different bonding, cushioning and gap-filling requirements.
Send InquiryProduct Description
0.25mm to 2mm Acrylic Foam Tape Options
Gray, White, Black and Clear Foam Tape
Flexible Bonding for Automotive and Industrial Components
Roll Slitting and Die Cut Tape for OEM Components
Acrylic Foam Tape Product Overview
Acrylic Foam Tape is an elastic bonding material designed for component mounting, sealing and surface attachment. The tape consists of an acrylic foam core, acrylic adhesive and a release liner. The acrylic foam core provides flexibility and thickness, while the acrylic adhesive creates the bonding interface between the tape and the application surface.
This Acrylic Foam Tape series is available in gray, white, black and clear versions. The product range includes 0.25mm, 0.4mm, 0.64mm, 0.8mm, 1.1mm and 1.6mm thickness options. Different thicknesses allow customers to select a suitable bonding layer according to component design and required gap compensation.
The 0.8mm Acrylic Foam Tape is one of the available thickness options for applications requiring a thicker and more conformable bonding layer. Gray 0.8mm Acrylic Foam Tape is particularly suitable where the bonding layer needs to visually coordinate with dark or neutral automotive components.

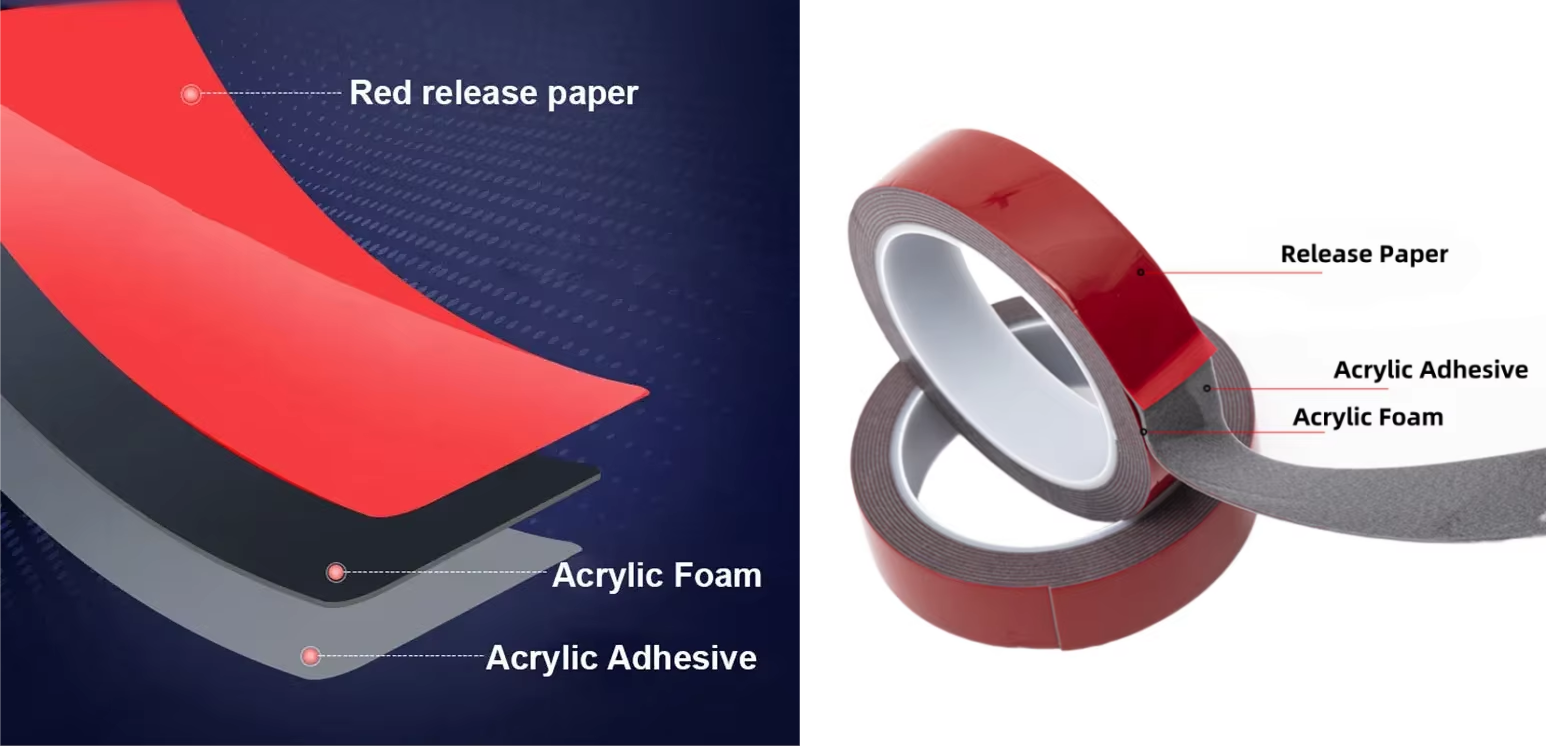

Acrylic Foam Tape Construction
Acrylic Foam Core
The acrylic foam core provides the tape with elasticity, compressibility and conformability. The foam structure allows Acrylic Foam Tape to follow slightly curved or uneven bonding surfaces.
The acrylic foam layer also provides cushioning between assembled components. The combination of elasticity and thickness allows Acrylic Foam Tape to accommodate small surface differences during assembly.
Acrylic Adhesive
The adhesive system is based on acrylic adhesive technology. Acrylic adhesive provides strong bonding performance on many commonly used materials, including metal, glass, plastics and painted surfaces.
Acrylic Foam Tape can therefore be used when a clean bonding method is preferred over exposed mechanical fasteners.
Release Liner
The adhesive surface is protected by a release liner before application. Red PE and red CP liner options are available for selected product series.
The release liner protects the adhesive during storage, transportation and converting while allowing the tape to be processed into different widths or die-cut shapes.

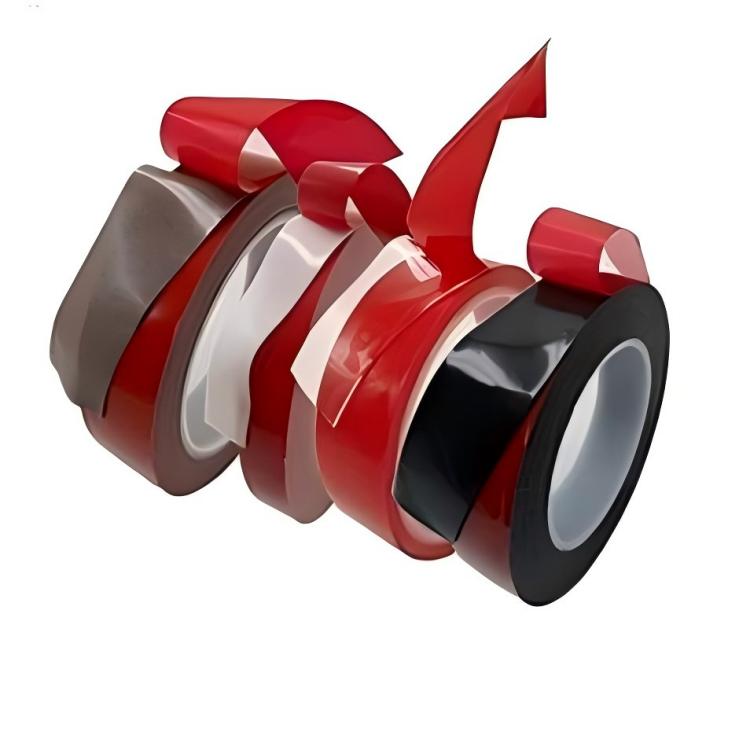

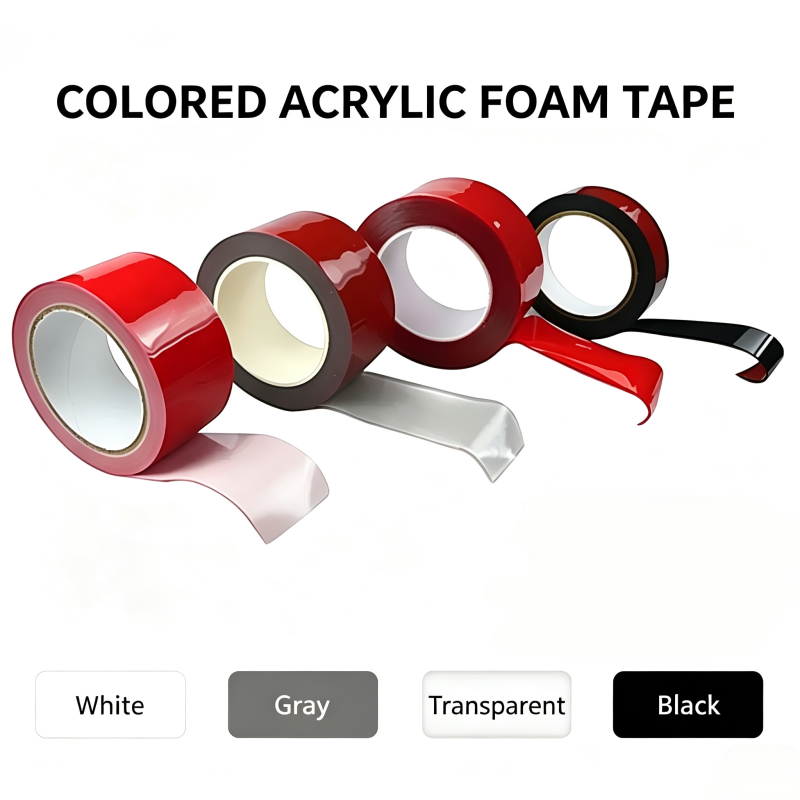

Acrylic Foam Tape Available Colors
Gray Acrylic Foam Tape
Gray Acrylic Foam Tape is available across the 8025G, 8040G, 8064G, 8080G, 8110G and 8160G series.
Gray Acrylic Foam Tape is suitable for automotive trim, exterior components, nameplates and industrial parts where a neutral bonding layer is preferred.
White Acrylic Foam Tape
White Acrylic Foam Tape is available across the 8025W, 8040W, 8064W, 8080W, 8110W and 8160W series.
White Acrylic Foam Tape can be selected for light-colored components, appliance parts, signs and decorative assemblies.
Black Acrylic Foam Tape
Black Acrylic Foam Tape is available across the 8025B, 8040B, 8064B, 8080B, 8110B and 8160B series.
Black Acrylic Foam Tape is suitable for dark-colored automotive components, decorative trim and applications where the bonding layer needs to blend with the assembly.
Clear Acrylic Foam Tape
Clear Acrylic Foam Tape is available across the 8025T, 8040T, 8064T, 8080T, 8110T and 8160T series.
Clear Acrylic Foam Tape is suitable for applications where a less visible bonding layer is preferred.
Acrylic Foam Tape Thickness Options
| Series | Thickness |
| G-A025C | 0.25mm |
| G-A050C | 0.50mm |
| G-A080C | 0.80mm |
| G-A100C | 1.0mm |
| G-A120C | 1.2mm |
| G-A200C | 2.0mm |
Acrylic Foam Tape thickness selection can be based on the required bonding gap, surface condition, component tolerance and cushioning requirement.
Thinner Acrylic Foam Tape can be considered for assemblies with limited clearance, while thicker Acrylic Foam Tape provides greater thickness for surface conformity and gap compensation.
Acrylic Foam Tape Technical Specifications
| Item | Specification |
| Product | Acrylic Foam Tape |
| Foam Core | Acrylic Foam |
| Adhesive | Acrylic Adhesive |
| Colors | Gray / White / Black / Clear |
| Thickness | 0.25 / 0.50 / 0.8 / 1.0 / 1.20 / 2.0mm |
| Liner | Red PE |
| Temperature Resistance | Up to 120°C |
| Width | Customizable |
| Length | Customizable |
| Converting | Slitting / Rewinding / Die Cutting |
Peel strength values should be confirmed according to the specific series, substrate and test conditions before final application.
Performance Characteristics
Conformable Foam Structure
Acrylic Foam Tape combines an elastic foam structure with an adhesive layer. The flexible structure allows Acrylic Foam Tape to maintain contact with slightly curved and uneven surfaces.
The conformability of Acrylic Foam Tape is useful for components where a rigid adhesive layer may not follow the surface accurately.
Cushioning Between Components
The acrylic foam layer provides a degree of cushioning between bonded components.
Acrylic Foam Tape can help accommodate minor movement and surface variation while maintaining contact between assembled parts.
Moisture and Weather Resistance
Acrylic Foam Tape is designed for applications requiring resistance to moisture and outdoor environmental exposure.
The acrylic construction makes Acrylic Foam Tape suitable for selected automotive, signage, architectural and outdoor assembly applications.
UV Resistance
Acrylic Foam Tape offers good resistance to ultraviolet exposure compared with many conventional adhesive systems.
The UV-resistant characteristics make Acrylic Foam Tape suitable for applications where bonded components may experience sunlight exposure.
Gap Compensation
The thickness of Acrylic Foam Tape creates a flexible bonding layer between two components.
Acrylic Foam Tape can compensate for minor gaps and differences between bonding surfaces, helping improve contact across the assembled area.
Automotive Applications
Acrylic Foam Tape is widely used for automotive component attachment and decorative assembly.
Typical applications include:
- Side molding
- Decorative trim
- Emblems
- Nameplates
- Badges
- Exterior accessories
- Interior panels
- Door trim
- Motorcycle lettering
Gray 0.8mm Acrylic Foam Tape can be considered for automotive components where a moderate foam thickness and neutral appearance are required.
Electronics and Appliance Applications
Acrylic Foam Tape can be used for selected electronic and appliance assembly applications.
Typical applications include:
- Electronic housings
- Decorative panels
- Appliance components
- LED boards
- Display-related components
- Plastic parts
- Metal components
The cushioning property of Acrylic Foam Tape can help reduce direct contact between assembled parts.
Glass and Architectural Applications
Acrylic Foam Tape can be used for selected glass-related accessories, architectural components and decorative mounting applications.
The flexible foam layer can help accommodate minor surface differences between assembled materials.
For demanding structural glazing applications, the actual product specification and engineering requirements should be evaluated before selecting Acrylic Foam Tape.
Signage and Graphic Applications
Acrylic Foam Tape is suitable for mounting signs, nameplates, graphic elements and display components.
The concealed bonding method provides a cleaner finished appearance because no exposed screws or rivets are required on the visible surface.
Custom Converting
GMARK provides converting services for Acrylic Foam Tape according to customer drawings, samples and assembly requirements.
Available processing includes:
- Jumbo roll slitting
- Narrow roll conversion
- Rewinding
- Fixed-length cutting
- Die cutting
- Custom shapes
- Component kits
- Customized packaging
Acrylic Foam Tape can be supplied as jumbo rolls for further processing or converted parts for direct assembly.
Why Choose GMARK Acrylic Foam Tape
Four Color Choices
Gray, white, black and clear Acrylic Foam Tape provide options for different product designs and visible assembly requirements.
Six Thickness Options
0.25mm, 0.4mm, 0.64mm, 0.8mm, 1.1mm and 1.6mm thicknesses cover different clearance and cushioning requirements.
Application-Oriented Selection
GMARK can recommend a suitable Acrylic Foam Tape specification based on substrate type, thickness, bonding area, environmental exposure and assembly method.
OEM Converting
GMARK supports slitting and die cutting for customers requiring specific widths, shapes and component formats.
Application Guide
Before applying Acrylic Foam Tape, clean the bonding surfaces and remove dust, oil and other contaminants.
Apply Acrylic Foam Tape evenly without stretching the tape during installation. Firm pressure should be applied across the bonding area to improve contact between the adhesive and substrate.
For automotive, outdoor or other demanding applications, sample testing should be completed with the actual substrate and environmental conditions before mass production.
